CD32
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | CD32-1R0M | 100KHz,0.3V | 1.0 | ±20 | 0.035 | 3.340 | | CD32-2R2M | 100KHz,0.3V | 2.2 | ±20 | 0.059 | 2.350 | | CD32-3R3M | 100KHz,0.3V | 3.3 | ±20 | 0.098 | 1.830 | | CD32-4R7M | 100KHz,0.3V | 4.7 | ±20 | 0.137 | 1.500 | | CD32-5R6M | 100KHz,0.3V | 5.6 | ±20 | 0.157 | 1.360 | | CD32-6R8M | 100KHz,0.3V | 6.8 | ±20 | 0.196 | 1.220 | | CD32-8R2M | 100KHz,0.3V | 8.2 | ±20 | 0.230 | 1.090 | | CD32-100M | 1KHz,0.3V | 10.0 | ±20 | 0.286 | 0.950 | | CD32-120M | 1KHz,0.3V | 12.0 | ±20 | 0.322 | 0.880 | | CD32-150M | 1KHz,0.3V | 15.0 | ±20 | 0.398 | 0.820 | | CD32-180M | 1KHz,0.3V | 18.0 | ±20 | 0.520 | 0.760 | | CD32-220M | 1KHz,0.3V | 22.0 | ±20 | 0.660 | 0.630 | | CD32-270M | 1KHz,0.3V | 27.0 | ±20 | 0.760 | 0.620 | | CD32-330M | 1KHz,0.3V | 33.0 | ±20 | 0.870 | 0.560 | | CD32-390M | 1KHz,0.3V | 39.0 | ±20 | 1.100 | 0.510 | | CD32-470M | 1KHz,0.3V | 47.0 | ±20 | 1.250 | 0.470 | | CD32-560M | 1KHz,0.3V | 56.0 | ±20 | 1.590 | 0.420 | | CD32-680M | 1KHz,0.3V | 68.0 | ±20 | 1.820 | 0.380 | | CD32-820M | 1KHz,0.3V | 82.0 | ±20 | 2.440 | 0.340 | | CD32-101M | 1KHz,0.3V | 100.0 | ±20 | 2.840 | 0.310 | | CD32-121M | 1KHz,0.3V | 120.0 | ±20 | 3.190 | 0.280 | | CD32-151M | 1KHz,0.3V | 150.0 | ±20 | 4.200 | 0.160 |
特 長：
FEATURES:
數量/卷：2,500PCS。

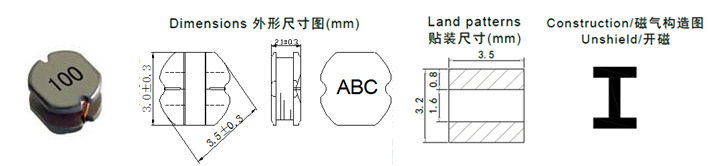

Quantity/reel: 2,500PCS. 產品小型化，標準外圓3.5mm（3.8mm Max）高度2.1mm TYP。
Small product, rotundity 3.5mm type (3.8mm Maximum) Height 2.1mm TYP. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、液晶顯示、筆記本電腦、個人掌上記事本、MP3/MP4播放器、數碼相機、便攜式光碟機等。
Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital camera/Portable CDR-W etc.
|
