CDRH4D28
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | CDRH4D28-1R2M | 100KHz,0.3V | 1.2 | ±20 | 24.2m | 2.56 | | CDRH4D28-2R2M | 100KHz,0.3V | 2.2 | ±20 | 31.3m | 2.04 | | CDRH4D28-3R3M | 100KHz,0.3V | 3.3 | ±20 | 49m | 1.57 | | CDRH4D28-4R7M | 100KHz,0.3V | 4.7 | ±20 | 72m | 1.32 | | CDRH4D28-5R6M | 100KHz,0.3V | 5.6 | ±20 | 101m | 1.17 | | CDRH4D28-6R8M | 100KHz,0.3V | 6.8 | ±20 | 108m | 1.12 | | CDRH4D28-8R2M | 100KHz,0.3V | 8.2 | ±20 | 118m | 1.04 | | CDRH4D28-100M | 100KHz,0.3V | 10.0 | ±20 | 128m | 1.00 | | CDRH4D28-120M | 100KHz,0.3V | 12.0 | ±20 | 132m | 0.84 | | CDRH4D28-150M | 100KHz,0.3V | 15.0 | ±20 | 149m | 0.76 | | CDRH4D28-180M | 100KHz,0.3V | 18.0 | ±20 | 165m | 0.72 | | CDRH4D28-220M | 100KHz,0.3V | 22.0 | ±20 | 235m | 0.70 | | CDRH4D28-330M | 100KHz,0.3V | 33.0 | ±20 | 331m | 0.56 | | CDRH4D28-390M | 100KHz,0.3V | 39.0 | ±20 | 384m | 0.50 | | CDRH4D28-470M | 100KHz,0.3V | 47.0 | ±20 | 587m | 0.48 | | CDRH4D28-560M | 100KHz,0.3V | 56.0 | ±20 | 624m | 0.41 | | CDRH4D28-680M | 100KHz,0.3V | 68.0 | ±20 | 699m | 0.35 | | CDRH4D28-820M | 100KHz,0.3V | 82.0 | ±20 | 915m | 0.32 | | CDRH4D28-101M | 100KHz,0.3V | 100.0 | ±20 | 1.02 | 0.29 | | CDRH4D28-121M | 100KHz,0.3V | 120.0 | ±20 | 1.27 | 0.27 | | CDRH4D28-151M | 100KHz,0.3V | 150.0 | ±20 | 1.35 | 0.24 | | CDRH4D28-181M | 100KHz,0.3V | 180.0 | ±20 | 1.54 | 0.22 |
特長：
FEATURES:
數量/卷：2,000PCS。

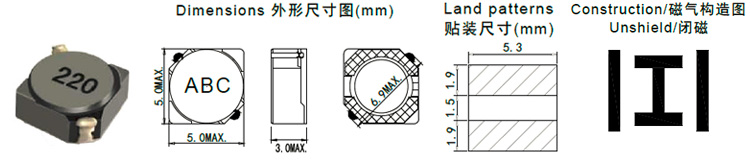

Quantity/reel: 2,000PCS. 產品小型化，方形5.0mm MAX，高度3.0mm MAX。
Small product, quadrate 5.0mm MAX. Height 3.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering.
|
