CDRH5D28
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | CDRH5D28-2R2M | 100KHz,0.3V | 2.2 | ±20 | 0.017 | 2.60 | | CDRH5D28-3R3M | 100KHz,0.3V | 3.3 | ±20 | 0.029 | 2.40 | | CDRH5D28-100M | 100KHz,0.3V | 10.0 | ±20 | 0.065 | 1.30 | | CDRH5D28-120M | 100KHz,0.3V | 12.0 | ±20 | 0.076 | 1.20 | | CDRH5D28-180M | 100KHz,0.3V | 18.0 | ±20 | 0.110 | 1.00 | | CDRH5D28-220M | 100KHz,0.3V | 22.0 | ±20 | 0.122 | 0.90 | | CDRH5D28-330M | 100KHz,0.3V | 33.0 | ±20 | 0.189 | 0.75 | | CDRH5D28-470M | 100KHz,0.3V | 47.0 | ±20 | 0.250 | 0.62 | | CDRH5D28-560M | 100KHz,0.3V | 56.0 | ±20 | 0.305 | 0.58 | | CDRH5D28-680M | 100KHz,0.3V | 68.0 | ±20 | 0.355 | 0.52 | | CDRH5D28-820M | 100KHz,0.3V | 82.0 | ±20 | 0.463 | 0.46 | | CDRH5D28-101M | 100KHz,0.3V | 100.0 | ±20 | 0.520 | 0.42 | | CDRH5D28-121M | 100KHz,0.3V | 120.0 | ±20 | 0.560 | 0.40 | | CDRH5D28-151M | 100KHz,0.3V | 150.0 | ±20 | 0.680 | 0.35 | | CDRH5D28-181M | 100KHz,0.3V | 180.0 | ±20 | 0.930 | 0.32 | | CDRH5D28-221M | 100KHz,0.3V | 220.0 | ±20 | 1.150 | 0.30 | | CDRH5D28-271M | 100KHz,0.3V | 270.0 | ±20 | 1.560 | 0.27 | | CDRH5D28-331M | 100KHz,0.3V | 330.0 | ±20 | 1.980 | 0.25 | | CDRH5D28-391M | 100KHz,0.3V | 390.0 | ±20 | 2.500 | 0.22 | | CDRH5D28-471M | 100KHz,0.3V | 470.0 | ±20 | 2.700 | 0.20 | | CDRH5D28-561M | 100KHz,0.3V | 560.0 | ±20 | 3.120 | 0.18 | | CDRH5D28-681M | 100KHz,0.3V | 680.0 | ±20 | 4.150 | 0.16 |
特長：
FEATURES:
數量/卷：2,000PCS。

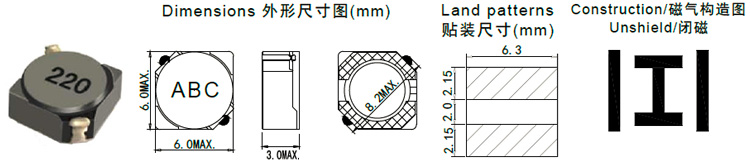

Quantity/reel: 2,000PCS. 產品小型化，方形6.0mm MAX，高度3.0mm MAX。
Small product, quadrate 6.0mm MAX. Height 3.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于數碼相機、掃描儀、升降壓轉換器、磁帶錄像機電源、液晶顯示組件、便攜終端設備、筆記本電腦等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
