CDRH74
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | CDRH74-100M | 1KHz,0.3V | 10.0 | ±20 | 0.049 | 1.84 | | CDRH74-120M | 1KHz,0.3V | 12.0 | ±20 | 0.058 | 1.71 | | CDRH74-150M | 1KHz,0.3V | 15.0 | ±20 | 0.081 | 1.47 | | CDRH74-180M | 1KHz,0.3V | 18.0 | ±20 | 0.091 | 1.31 | | CDRH74-220M | 1KHz,0.3V | 22.0 | ±20 | 0.110 | 1.23 | | CDRH74-270M | 1KHz,0.3V | 27.0 | ±20 | 0.150 | 1.12 | | CDRH74-330M | 1KHz,0.3V | 33.0 | ±20 | 0.170 | 0.96 | | CDRH74-390M | 1KHz,0.3V | 39.0 | ±20 | 0.230 | 0.91 | | CDRH74-470M | 1KHz,0.3V | 47.0 | ±20 | 0.260 | 0.88 | | CDRH74-560M | 1KHz,0.3V | 56.0 | ±20 | 0.350 | 0.75 | | CDRH74-680M | 1KHz,0.3V | 68.0 | ±20 | 0.380 | 0.69 | | CDRH74-820M | 1KHz,0.3V | 82.0 | ±20 | 0.430 | 0.61 | | CDRH74-101M | 1KHz,0.3V | 100.0 | ±20 | 0.610 | 0.60 | | CDRH74-121M | 1KHz,0.3V | 120.0 | ±20 | 0.660 | 0.52 | | CDRH74-151M | 1KHz,0.3V | 150.0 | ±20 | 0.880 | 0.46 | | CDRH74-181M | 1KHz,0.3V | 180.0 | ±20 | 0.980 | 0.42 | | CDRH74-221M | 1KHz,0.3V | 220.0 | ±20 | 1.170 | 0.36 | | CDRH74-271M | 1KHz,0.3V | 270.0 | ±20 | 1.640 | 0.34 | | CDRH74-331M | 1KHz,0.3V | 330.0 | ±20 | 1.860 | 0.32 | | CDRH74-391M | 1KHz,0.3V | 390.0 | ±20 | 2.850 | 0.29 | | CDRH74-471M | 1KHz,0.3V | 470.0 | ±20 | 3.010 | 0.26 | | CDRH74-561M | 1KHz,0.3V | 560.0 | ±20 | 3.620 | 0.23 | | CDRH74-681M | 1KHz,0.3V | 680.0 | ±20 | 4.630 | 0.22 | | CDRH74-821M | 1KHz,0.3V | 820.0 | ±20 | 5.200 | 0.20 | | CDRH74-102M | 1KHz,0.3V | 1000.0 | ±20 | 6.000 | 0.18 |
特長：
FEATURES:
數量/卷：1,000PCS。

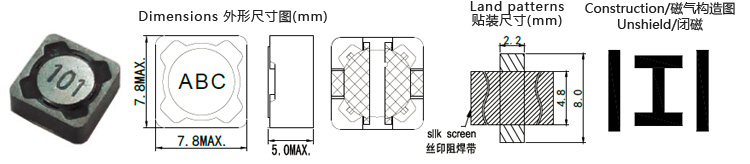

Quantity/reel: 1,000PCS. 產品小型化，方形7.8mm MAX，高度5.0mm MAX。
Small product, quadrate 7.8mm MAX. Height 5.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、便攜式攝錄機、液晶顯示、筆記本電腦、便攜式通訊設備電源等。
Widely use in DC-DC converter/CaMorder/LCD TV/Notebook/Power supplies for portable communication equipment etc.
|
