NR4020
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | NR4020-1R0N | 100KHz,0.25V | 1.00 | ±30 | 0.036 | 5.10 | | NR4020-1R2N | 100KHz,0.25V | 1.20 | ±30 | 0.036 | 4.78 | | NR4020-1R5N | 100KHz,0.25V | 1.50 | ±30 | 0.044 | 4.45 | | NR4020-2R2N | 100KHz,0.25V | 2.20 | ±30 | 0.050 | 3.20 | | NR4020-3R3M | 100KHz,0.25V | 3.30 | ±20 | 0.088 | 3.10 | | NR4020-3R6M | 100KHz,0.25V | 3.60 | ±20 | 0.069 | 2.80 | | NR4020-4R7M | 100KHz,0.25V | 4.70 | ±20 | 0.094 | 2.35 | | NR4020-5R1M | 100KHz,0.25V | 5.10 | ±20 | 0.106 | 2.30 | | NR4020-5R6M | 100KHz,0.25V | 5.60 | ±20 | 0.113 | 2.20 | | NR4020-6R2M | 100KHz,0.25V | 6.20 | ±20 | 0.144 | 2.15 | | NR4020-6R8M | 100KHz,0.25V | 6.80 | ±20 | 0.156 | 2.20 | | NR4020-7R5M | 100KHz,0.25V | 7.50 | ±20 | 0.206 | 1.85 | | NR4020-8R2M | 100KHz,0.25V | 8.20 | ±20 | 0.219 | 1.75 | | NR4020-100M | 100KHz,0.25V | 10.0 | ±20 | 0.288 | 1.60 | | NR4020-120M | 100KHz,0.25V | 12.0 | ±20 | 0.438 | 1.50 | | NR4020-150M | 100KHz,0.25V | 15.0 | ±20 | 0.036 | 1.35 | | NR4020-220M | 100KHz,0.25V | 22.0 | ±20 | 0.036 | 1.05 |
特長：
FEATURES:
數量/卷：2,000PCS。

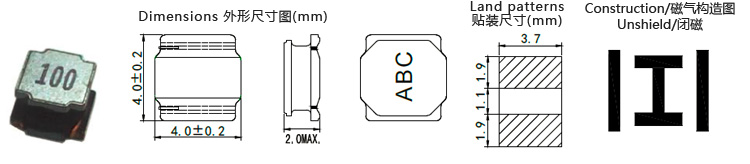

Quantity/reel: 2,000PCS. 產品小型化，方形4.0mm×4.0mm，高度2.0mm MAX。
Small product, quadrate 4.0mm×4.0mm, Height 2.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、液晶顯示、筆記本電腦、個人掌上記事本、MP3/MP4播放器、數碼相機、便攜式光碟機等。
Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital camera/Portable CDR-W etc.
|
