SDR1812
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | SDR1812-1R0M | 100KHz,0.3V | 1.0 | ±20 | 0.20 | 0.500 | | SDR1812-2R2M | 100KHz,0.3V | 2.2 | ±20 | 0.30 | 0.500 | | SDR1812-3R3M | 100KHz,0.3V | 3.3 | ±20 | 0.35 | 0.500 | | SDR1812-5R6M | 100KHz,0.3V | 5.6 | ±20 | 0.47 | 0.500 | | SDR1812-6R8M | 100KHz,0.3V | 6.8 | ±20 | 0.50 | 0.450 | | SDR1812-8R2M | 100KHz,0.3V | 8.2 | ±20 | 0.56 | 0.450 | | SDR1812-100M | 1KHz,0.3V | 10.0 | ±20 | 0.56 | 0.400 | | SDR1812-150M | 1KHz,0.3V | 15.0 | ±20 | 0.73 | 0.360 | | SDR1812-180M | 1KHz,0.3V | 18.0 | ±20 | 0.82 | 0.340 | | SDR1812-220M | 1KHz,0.3V | 22.0 | ±20 | 0.94 | 0.320 | | SDR1812-270M | 1KHz,0.3V | 27.0 | ±20 | 1.10 | 0.300 | | SDR1812-330M | 1KHz,0.3V | 33.0 | ±20 | 1.20 | 0.270 | | SDR1812-470M | 1KHz,0.3V | 47.0 | ±20 | 1.50 | 0.220 | | SDR1812-560M | 1KHz,0.3V | 56.0 | ±20 | 1.70 | 0.200 | | SDR1812-680M | 1KHz,0.3V | 68.0 | ±20 | 1.90 | 0.180 | | SDR1812-820M | 1KHz,0.3V | 82.0 | ±20 | 2.20 | 0.170 | | SDR1812-101M | 1KHz,0.3V | 100.0 | ±20 | 2.50 | 0.160 | | SDR1812-121M | 1KHz,0.3V | 120.0 | ±20 | 3.00 | 0.150 | | SDR1812-151M | 1KHz,0.3V | 150.0 | ±20 | 3.70 | 0.130 | | SDR1812-181M | 1KHz,0.3V | 180.0 | ±20 | 4.50 | 0.120 | | SDR1812-221M | 1KHz,0.3V | 220.0 | ±20 | 5.40 | 0.110 | | SDR1812-271M | 1KHz,0.3V | 270.0 | ±20 | 6.80 | 0.100 | | SDR1812-331M | 1KHz,0.3V | 330.0 | ±20 | 8.20 | 0.095 | | SDR1812-471M | 1KHz,0.3V | 470.0 | ±20 | 11.80 | 0.080 |
特點 FEATURES:
數量/卷：2,000PCS。

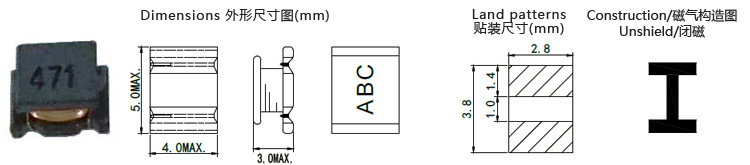

Quantity/reel: 2,000PCS. 產品小型化，方形5.0mm×4.0mm，高度3.0mm MAX。
Small product, quadrate 5.0mm×4.0mm, Height 3.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、液晶顯示、筆記本電腦、個人掌上記事本、MP3/MP4播放器、數碼相機、便攜式光碟機等。
Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital camera/Portable CDR-W etc.
|
