CDRH4D18
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | CDRH4D18-1R0M | 100KHz,0.3V | 1.0 | ±20 | 45m | 1.72 | | CDRH4D18-2R2M | 100KHz,0.3V | 2.2 | ±20 | 75m | 1.32 | | CDRH4D18-2R7M | 100KHz,0.3V | 2.7 | ±20 | 105m | 1.28 | | CDRH4D18-3R3M | 100KHz,0.3V | 3.3 | ±20 | 110m | 1.04 | | CDRH4D18-3R9M | 100KHz,0.3V | 3.9 | ±20 | 155m | 0.88 | | CDRH4D18-4R7M | 100KHz,0.3V | 4.7 | ±20 | 162m | 0.84 | | CDRH4D18-5R6M | 100KHz,0.3V | 5.6 | ±20 | 170m | 0.80 | | CDRH4D18-6R8M | 100KHz,0.3V | 6.8 | ±20 | 190m | 0.76 | | CDRH4D18-100M | 1KHz,0.3V | 10.0 | ±20 | 200m | 0.61 | | CDRH4D18-120M | 1KHz,0.3V | 12.0 | ±20 | 210m | 0.56 | | CDRH4D18-150M | 11KHz,0.3V | 15.0 | ±20 | 240m | 0.50 | | CDRH4D18-180M | 1KHz,0.3V | 18.0 | ±20 | 338m | 0.48 | | CDRH4D18-220M | 1KHz,0.3V | 22.0 | ±20 | 397m | 0.41 | | CDRH4D18-270M | 1KHz,0.3V | 27.0 | ±20 | 441m | 0.35 | | CDRH4D18-330M | 1KHz,0.3V | 33.0 | ±20 | 694m | 0.32 | | CDRH4D18-390M | 1KHz,0.3V | 39.0 | ±20 | 709m | 0.30 | | CDRH4D18-470M | 1KHz,0.3V | 47.0 | ±20 | 922m | 0.28 | | CDRH4D18-560M | 1KHz,0.3V | 56.0 | ±20 | 1.08 | 0.26 | | CDRH4D18-680M | 1KHz,0.3V | 68.0 | ±20 | 1.3 | 0.24 | | CDRH4D18-820M | 1KHz,0.3V | 82.0 | ±20 | 1.56 | 0.22 | | CDRH4D18-101M | 1KHz,0.3V | 100.0 | ±20 | 1.73 | 0.20 | | CDRH4D18-121M | 1KHz,0.3V | 120.0 | ±20 | 2.39 | 0.18 | | CDRH4D18-151M | 1KHz,0.3V | 150.0 | ±20 | 2.67 | 0.15 | | CDRH4D18-181M | 1KHz,0.3V | 180.0 | ±20 | 4.00 | 0.14 |
特長：
FEATURES:
數量/卷：2,500PCS。

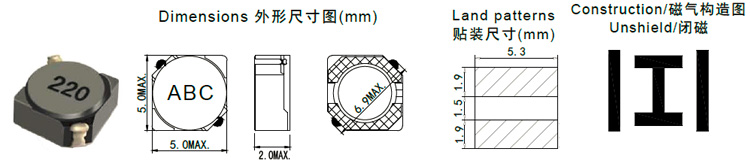

Quantity/reel: 2,500PCS. 產品小型化，方形5.0mm MAX，高度2.0mm MAX。
Small product, quadrate 5.0mm MAX. Height 2.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于數碼相機、掃描儀、升降壓轉換器、磁帶錄像機電源、液晶顯示組件、便攜終端設備、筆記本電腦等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
