CDRH73
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | CDRH73-100M | 1KHz,0.3V | 10.0 | ±20 | 0.072 | 1.68 | | CDRH73-120M | 1KHz,0.3V | 12.0 | ±20 | 0.098 | 1.52 | | CDRH73-150M | 1KHz,0.3V | 15.0 | ±20 | 0.130 | 1.33 | | CDRH73-180M | 1KHz,0.3V | 18.0 | ±20 | 0.140 | 1.20 | | CDRH73-220M | 1KHz,0.3V | 22.0 | ±20 | 0.190 | 1.07 | | CDRH73-270M | 1KHz,0.3V | 27.0 | ±20 | 0.210 | 0.96 | | CDRH73-330M | 1KHz,0.3V | 33.0 | ±20 | 0.240 | 0.91 | | CDRH73-390M | 1KHz,0.3V | 39.0 | ±20 | 0.320 | 0.77 | | CDRH73-470M | 1KHz,0.3V | 47.0 | ±20 | 0.360 | 0.76 | | CDRH73-560M | 1KHz,0.3V | 56.0 | ±20 | 0.470 | 0.68 | | CDRH73-680M | 1KHz,0.3V | 68.0 | ±20 | 0.520 | 0.61 | | CDRH73-820M | 1KHz,0.3V | 82.0 | ±20 | 0.690 | 0.57 | | CDRH73-101M | 1KHz,0.3V | 100.0 | ±20 | 0.790 | 0.50 | | CDRH73-121M | 1KHz,0.3V | 120.0 | ±20 | 0.890 | 0.49 | | CDRH73-151M | 1KHz,0.3V | 150.0 | ±20 | 1.270 | 0.43 | | CDRH73-181M | 1KHz,0.3V | 180.0 | ±20 | 1.450 | 0.39 | | CDRH73-221M | 1KHz,0.3V | 220.0 | ±20 | 1.650 | 0.35 | | CDRH73-271M | 1KHz,0.3V | 270.0 | ±20 | 2.310 | 0.32 | | CDRH73-331M | 1KHz,0.3V | 330.0 | ±20 | 2.620 | 0.28 | | CDRH73-391M | 1KHz,0.3V | 390.0 | ±20 | 2.940 | 0.26 | | CDRH73-471M | 1KHz,0.3V | 470.0 | ±20 | 4.180 | 0.24 | | CDRH73-561M | 1KHz,0.3V | 560.0 | ±20 | 4.670 | 0.22 | | CDRH73-681M | 1KHz,0.3V | 680.0 | ±20 | 5.730 | 0.19 | | CDRH73-821M | 1KHz,0.3V | 820.0 | ±20 | 6.540 | 0.18 | | CDRH73-102M | 1KHz,0.3V | 1000.0 | ±20 | 9.440 | 0.16 |
特長：
FEATURES:
數量/卷：1,000PCS。

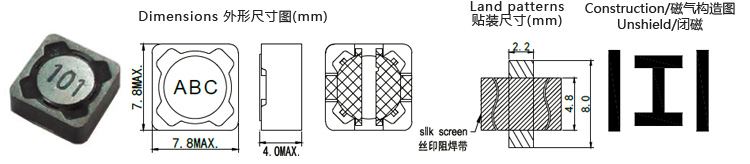

Quantity/reel: 1,000PCS. 產品小型化，方形7.8mm MAX，高度4.0mm MAX。
Small product, quadrate 7.8mm MAX. Height 4.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、便攜式攝錄機、液晶顯示、筆記本電腦、便攜式通訊設備電源等。
Widely use in DC-DC converter/CaMorder/LCD TV/Notebook/Power supplies for portable communication equipment etc.
|
