NR4018
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | NR4018-1R0N | 100KHz,0.25V | 1.00 | ±30 | 0.029 | 4.50 | | NR4018-1R5N | 100KHz,0.25V | 1.50 | ±30 | 0.041 | 3.35 | | NR4018-2R2M | 100KHz,0.25V | 2.20 | ±20 | 0.055 | 2.70 | | NR4018-3R3M | 100KHz,0.25V | 3.30 | ±20 | 0.088 | 2.45 | | NR4018-4R7M | 100KHz,0.25V | 4.70 | ±20 | 0.113 | 1.70 | | NR4018-5R6M | 100KHz,0.25V | 5.60 | ±20 | 0.129 | 1.60 | | NR4018-6R8M | 100KHz,0.25V | 6.80 | ±20 | 0.155 | 1.45 | | NR4018-100M | 100KHz,0.25V | 10.0 | ±20 | 0.250 | 1.30 | | NR4018-150M | 100KHz,0.25V | 15.0 | ±20 | 0.335 | 0.94 | | NR4018-220M | 100KHz,0.25V | 22.0 | ±20 | 0.488 | 0.80 | | NR4018-330M | 100KHz,0.25V | 33.0 | ±20 | 0.700 | 0.65 | | NR4018-470M | 100KHz,0.25V | 47.0 | ±20 | 0.945 | 0.57 |
特長：
FEATURES:
數量/卷：2,000PCS。
Quantity/reel: 2,000PCS. 產品小型化，方形4.0mm×4.0mm，高度1.8mm MAX。

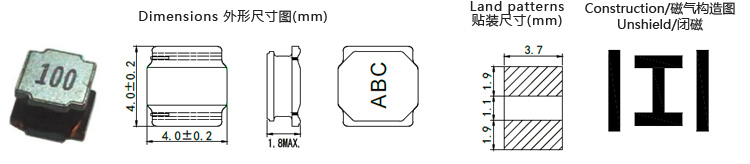

Small product, quadrate 4.0mm×4.0mm, Height 1.8mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、液晶顯示、筆記本電腦、個人掌上記事本、MP3/MP4播放器、數碼相機、便攜式光碟機等。
Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital camera/Portable CDR-W etc.
|
